HKV-ER-SLD13

Classification:

Solar Street Light

Hotline:

86-028-81261708

1. Product advantages

A. High lumen, brightness increased by 30%

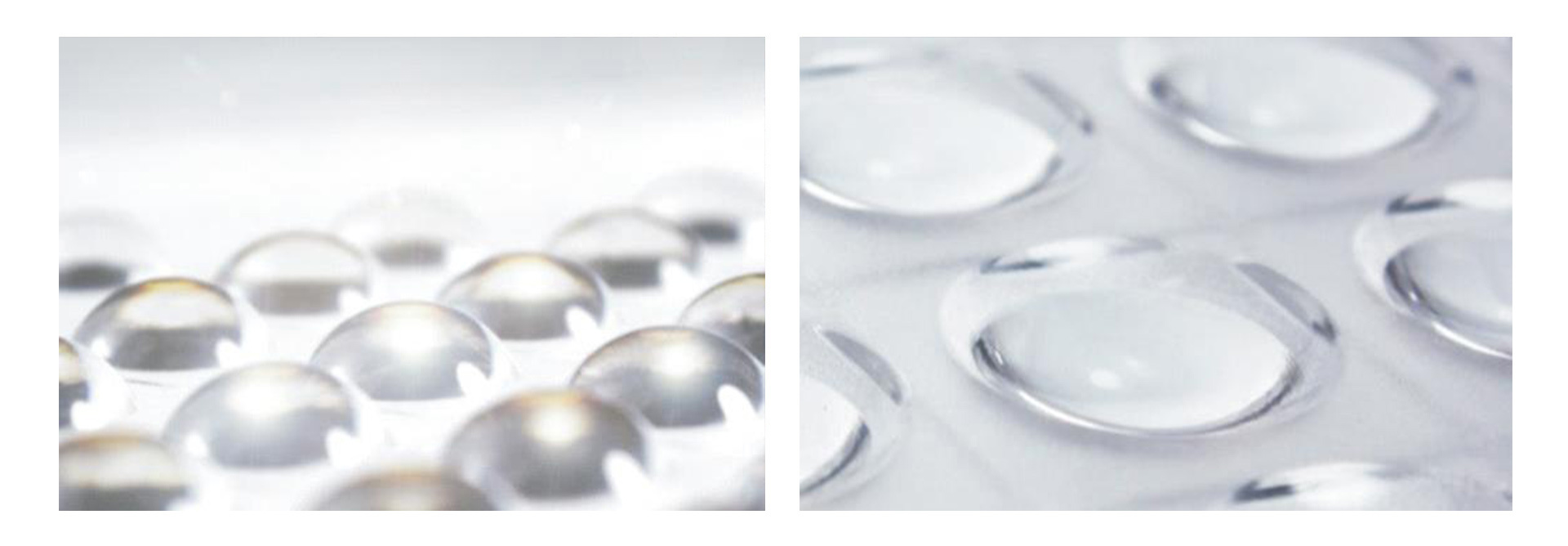

This product adopts LED optical lens design, the lens can effectively gather the light of the light source to improve the brightness and reduce the light loss.The light efficiency of the traditional reflective cup is increased by more than 20%. At the same time, the lens of this product is made of PC (Teijin Brand from Japen) material, and the transmittance after processing is as high as 92%,It is much higher than 80% of the glass transmittance; the whole lighting efficiency is increased by 30%, and the irradiation area is increased by more than 25%.

Note: the lens of this product can be used normally in the high temperature range of 125 ℃ and the low temperature of - 40 ℃. The lens will not yellowing and brittle within 5 years. The material has passed many international certification.

B. Large luminous angle, 25% increase in irradiation area
Through professional optical design, this product is equipped with an optical lens of 150 * 70, and the luminous angle is at the same installation height,30% larger than the traditional 120 degree irradiation area.

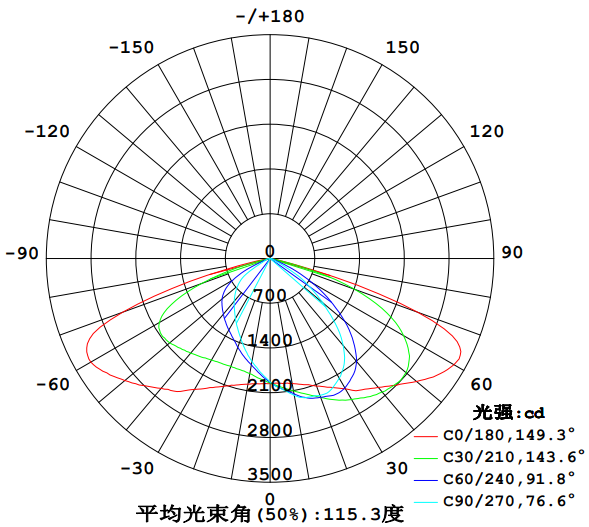

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

D. Smart power management system, extra-long battery lifespan
We provide 2 version for optional: normal type and sensor type. As for sensor type,when during senor mode,have the following benefits:

1. much more lumen output and discharge time,brightness will be 30% brighter than normal type.

2. What's more,multi mode optional:radar mode for all night, constant lighting mode for all night, and switch to radar mode after constant lighting mode.

3. As for the area with extreme weather or season,where lack of sunshine,sensor type can save electricity to meet the requirements from customers on “365 days lighting”.

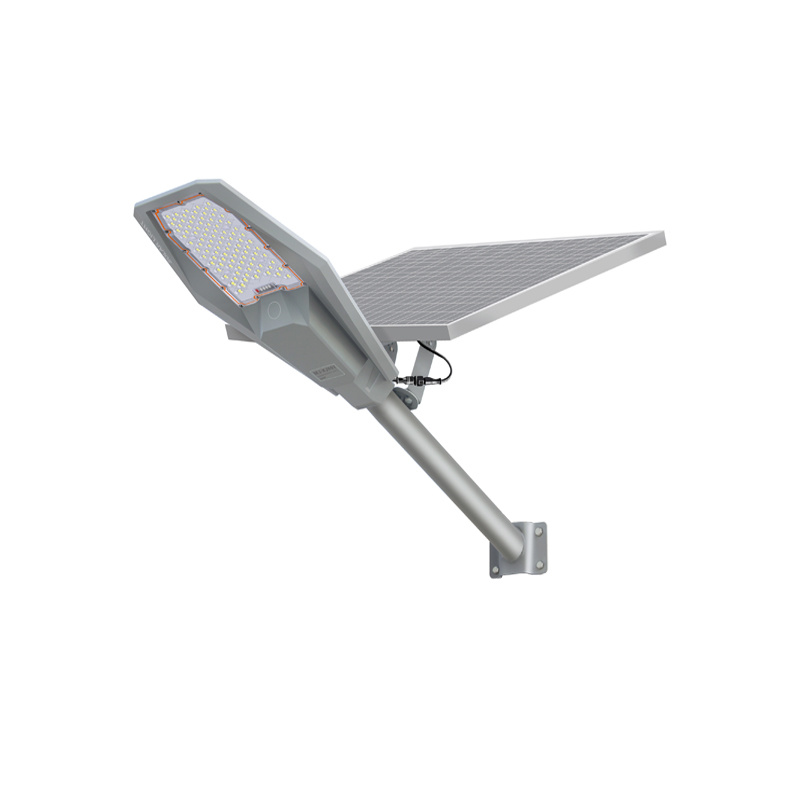

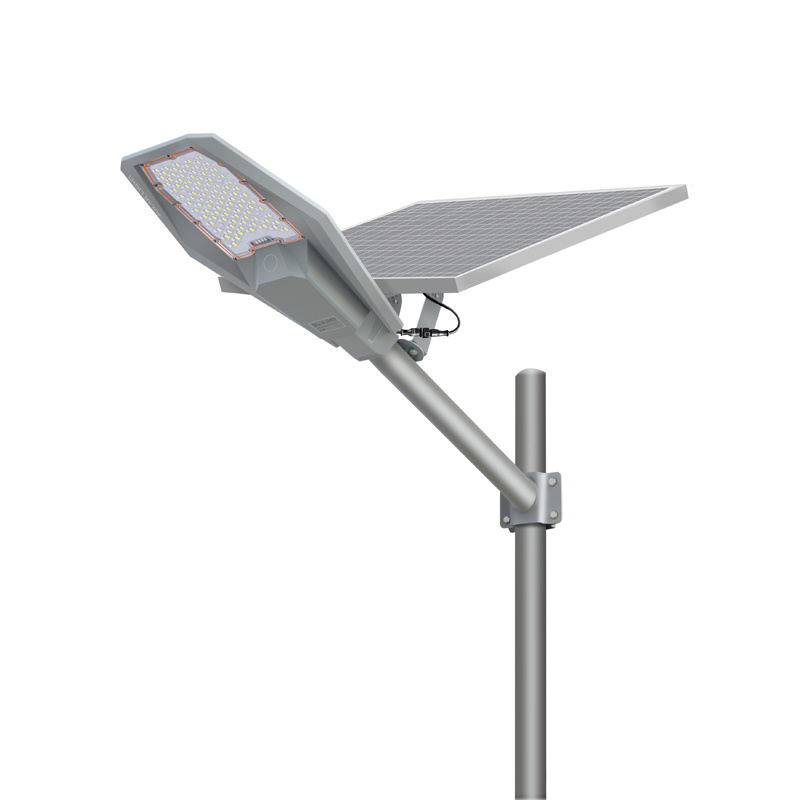

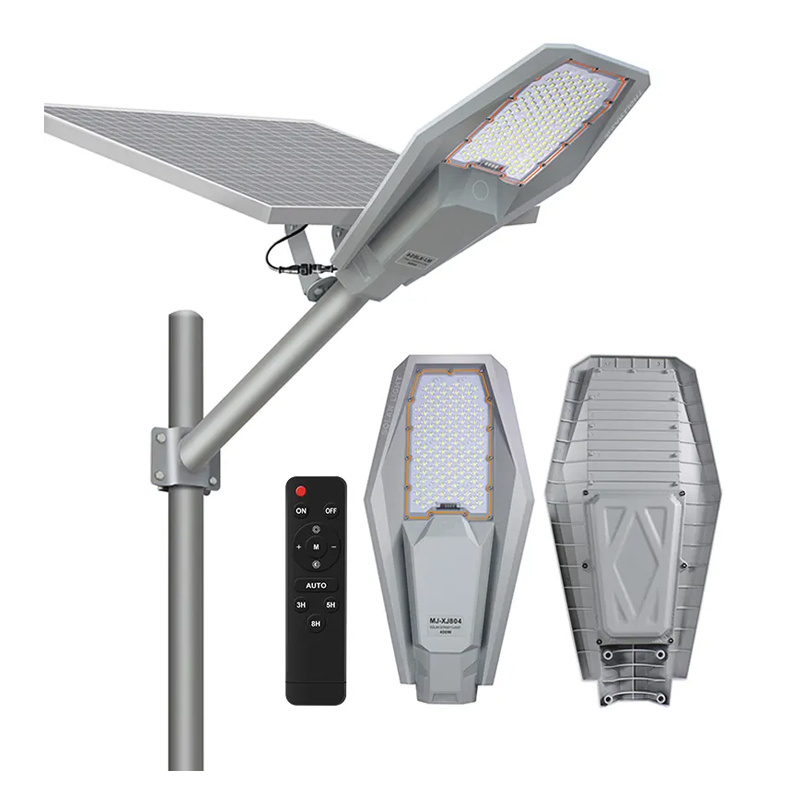

2、Product images

3、Product parameters

Power	Meterial Type	Photovoltaic panel	Battery	Discharge Time	Product Dimensions	Solar Panel size	Solar Panels	Product configuration
100W	Aluminium	192pcs	18Ah	18 hours+	52026080mm	30*350mm	Polycrystalline silicon 5V/25w	Waterproofline/Installingsupport/Remote control/Screws
200W	Aluminium	192pcs	30Ah	18 hours+	53026080mm	580*350MM	Polycrystalline silicon 5V/35w	Waterproofline/Installingsupport/Remote control/Screws
300W	Aluminium	300pcs	36Ah	two days	61530080mm	630*350MM	Polycrystalline silicon 5V/40w	Waterproofline/Installingsupport/Remote control/Screws
400W	Aluminium	300pcs	48Ah	two days	61530080mm	670*445MM	Polycrystalline silicon 5V/50w	Waterproofline/Installingsupport/Remote control/Screws
