1. Product application

Widely used in various roads, squares, gardens, greenways and other area lighting.

2. Product features

Using optical lenses, the light loss is lower, the light efficiency is higher, and it is more energy-saving;The surface of the heat sink is anodized to prevent corrosion and high-voltage electrostatic spraying treatment, making it corrosion-resistant and the protection level reaches IP66;Highly efficient and energy-saving, with the same illumination, it saves more than half the energy than traditional lamps.

Using a high-brightness chip, the chip has the characteristics of high thermal conductivity, good color rendering, small light attenuation, pure color spots, and no ghosting;
The polycrystalline silicon solar panel conversion rate is >18%. It uses high-strength, high-transmittance, low-iron, suede tempered glass to increase the sunlight radiation rate, with a light transmittance of over 92%. It has high-efficiency low-light charging response and a power attenuation rate of less than 20 years. 10%, with wind resistance, hail resistance and anti-corrosion properties, sealed and waterproof, high-efficiency multi-functional junction box, which can adapt to normal use under various complex and harsh climate conditions.

3.2V adopts deep-cycle power battery, which is sensitive in charging and discharging. It can adapt to stable operation in -40~60°C environment. It has an integrated design of built-in lamps and is easy to install. It is equipped with patented technology, efficient and excellent intelligent controller, and automatic maximum power tracking performance ratio. The conversion rate of ordinary controllers exceeds 20%, and it saves more than 80% energy than ordinary controllers. It has overcharge and over-discharge functions; practical functions such as light control, time control, and waterproofing can effectively extend the function in rainy weather.

The whole lamp is made of ADC12 die-casting, which has better heat dissipation effect.The protection level is IP67. Design life ≥10 years.

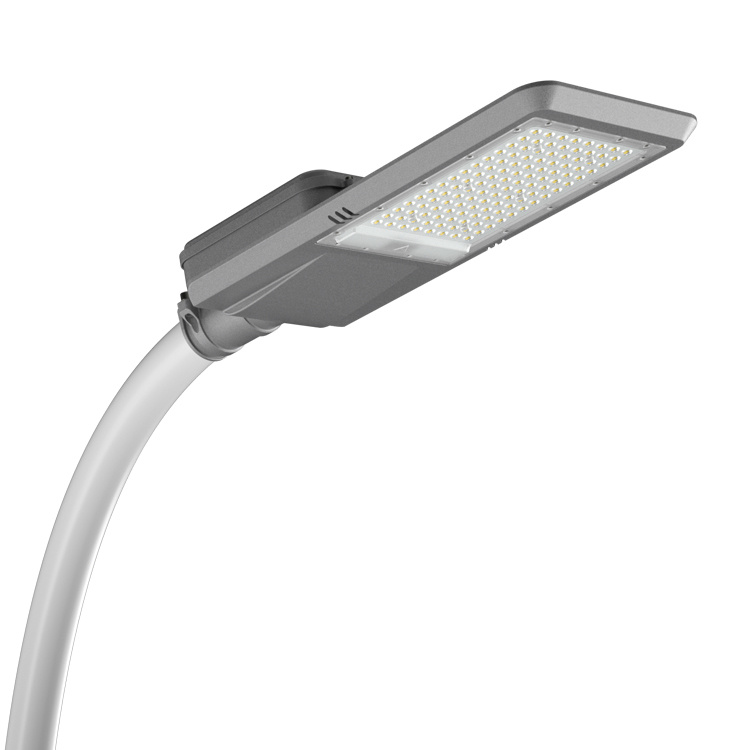

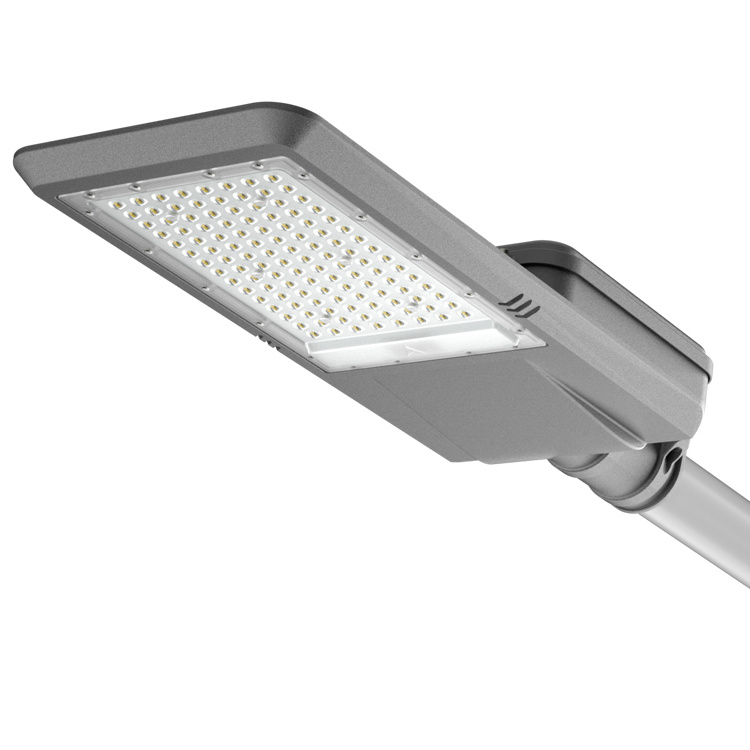

3.Product images

4.Luminescence curve

5.Product parameters

model	power	Lithium iron phosphate battery	Solar panels	light source	Luminous flux	color temperature	control method	Installation height
LD-BLD4A-100	100W	3.2V/70AH	Polycrystalline 6V/80W	100 5050 high brightness lamp beads	4300LM	3000-6500K	Remote control+intelligent power	6-8m
LD-BLD4A-100	100W	3.2V/90AH	Polycrystalline 6V/100W	100 5050 high brightness lamp beads	5400LM	3000-6500K	PWM+intelligent power	8m
LD-BLD4A-100	100W	3.2V/120AH	Polycrystalline 18V/100W	100 5050 high brightness lamp beads	6500LM	3000-6500K	MPPT+intelligent power	10m
LD-BLD4A-100	100W	3.2V/160AH	Polycrystalline 18V/120W	100 5050 high brightness lamp beads	8200LM	3000-6500K	MPPT+intelligent power	12m

model	power	Lithium iron phosphate battery	Solar panels	light source	Luminous flux	color temperature	control method	Installation height
LD-BLD4A-60	60W	3.2V/30AH	Polycrystalline 6V/50W	60 5050 high brightness lamp beads	2500LM	3000-6500K	Remote control+intelligent power	6m
LD-BLD4A-60	60W	3.2V/40AH	Polycrystalline 6V/60W	60 5050 high brightness lamp beads	2600LM	3000-6500K	Remote control+intelligent power	6m
LD-BLD4A-60	60W	3.2V/50AH	Polycrystalline 6V/60W	60 5050 high brightness lamp beads	3200LM	3000-6500K	Remote control+intelligent power	6m
LD-BLD4A-60	60W	3.2V/60AH	Polycrystalline 6V/80W	60 5050 high brightness lamp beads	4000LM	3000-6500K	Remote control+intelligent power	6-8m
