Detailed introduction

一、Product application

Main scope of application: billboards, highways, bridges and culverts, squares, buildings, etc.

二、 Product features

It adopts ABS shell and snap-sealed installation. The protection level reaches IP65. It is detachable and easy to maintain. It has good insulation and heat resistance, making the shell less likely to be damaged.
Using high-quality A-grade solar panels, it has fast absorption, high conversion, high charging, long life, and the tempered glass transmittance reaches 95%;
No need to pull wires, simple and fast, meeting different installation needs;
Different control modules can be selected for various functions: 1. Power display function, with built-in power reminder function, you can check the battery power at any time; 2. Always on intelligent power photoelectric integrated design; 3. Radar induction, full brightness when someone comes and when someone leaves Half light.
120° angle selection to meet professional light distribution.
The whole lamp is made of ADC12 die-casting, and the photovoltaic is integrated, making installation and transportation more convenient.

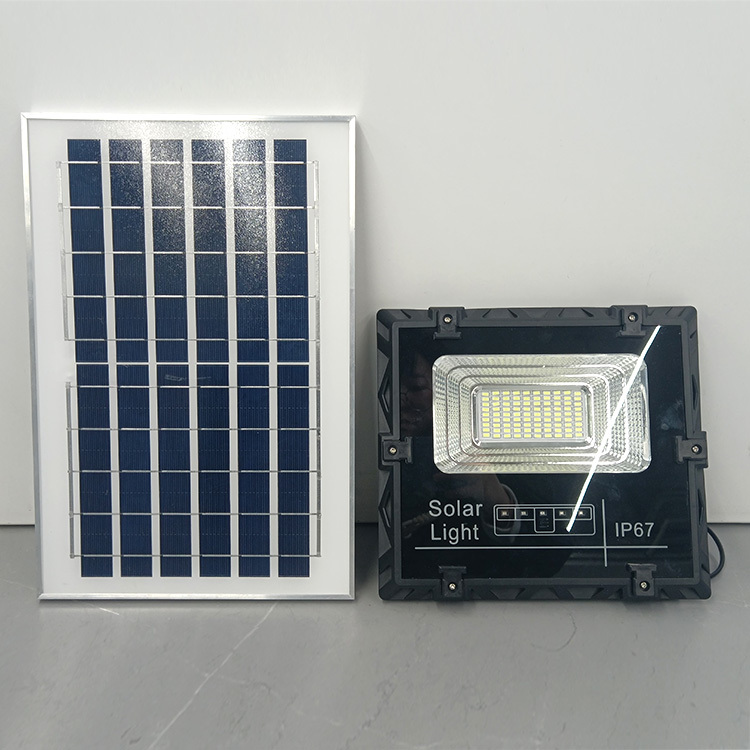

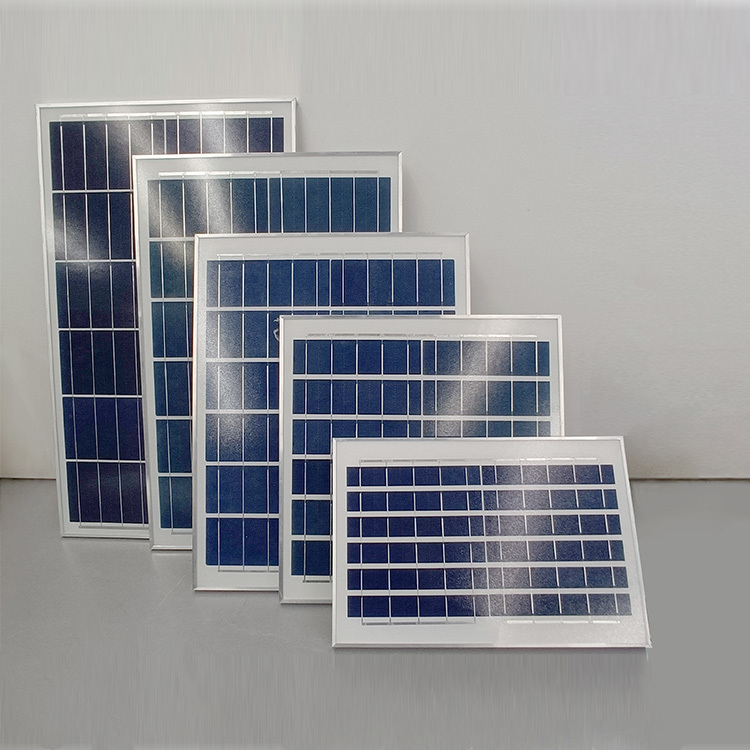

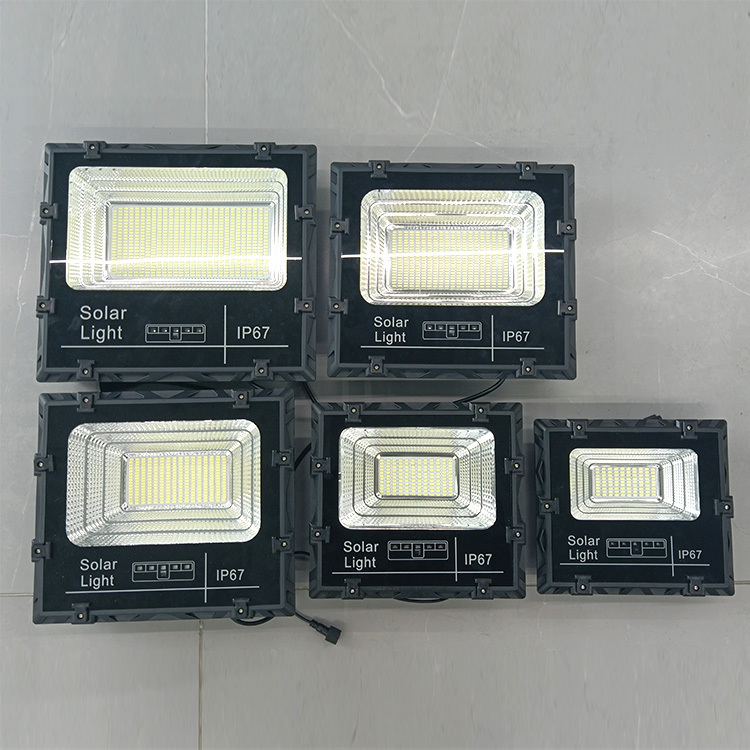

三、Product images

四、Luminescence curve

五、Product Information

model	power	Lithium iron phosphate battery	Solar panels	Light source	Luminous flux	Color temperature	Control method	Installation height
HKV-ALD12A-100	100W	3.2V/20AH	Monocrystalline 6V/25W	3030 100 pieces	1800LM	3000-6500K	Light control + intelligent power	4M
HKV-ALD12A-200	200W	3.2V/30AH	Monocrystalline 6V/35W	3030 180 pieces	2000LM	3000-6500K	Light control + intelligent power	5M
HKV-ALD12A-250	250W	3.2V/40AH	Monocrystalline 6V/50W	3030 240 pieces	3000LM	3000-6500K	Light control + intelligent power	6M
HKV-ALD11A-300	300W	3.2V/45AH	Monocrystalline 6V/60W	3030 180 pieces	3500LM	3000-6500K	Light control + intelligent power	7M
HKV-ALD11A-400	400W	3.2V/60AH	Monocrystalline 6V/80W	3030 240 pieces	5000LM	3000-6500K	Light control + intelligent power	8M
HKV-ALD11A-500	500W	3.2V/75AH	Monocrystalline 6V/100W	3030 240 pieces	6500LM	3000-6500K	Light control + intelligent power	10M
