1、 Product application
Widely used for lighting various roads, squares, tunnels, and other areas
2、 Product Features
Using optical lenses results in lower light loss, higher light efficiency, and greater energy efficiency;
The surface of the heat sink is treated with anodizing, anti-corrosion, and high-voltage electrostatic spraying, which is corrosion-resistant and has a protection level of IP66;
Efficient and energy-saving, with the same illuminance, it can save more than half of the energy compared to traditional lighting fixtures;
Adopting a high brightness chip, this chip has the characteristics of high thermal conductivity, good color rendering, low light attenuation, pure color spots, and no ghosting;
The driver adopts an integrated modular design with wide voltage input and constant current output, and has short-circuit and overvoltage protection functions. The ultra-low power consumption electro-optical power conversion is close to 100%;
The whole lamp is made of ADC12 die-casting, which has better heat dissipation effect.

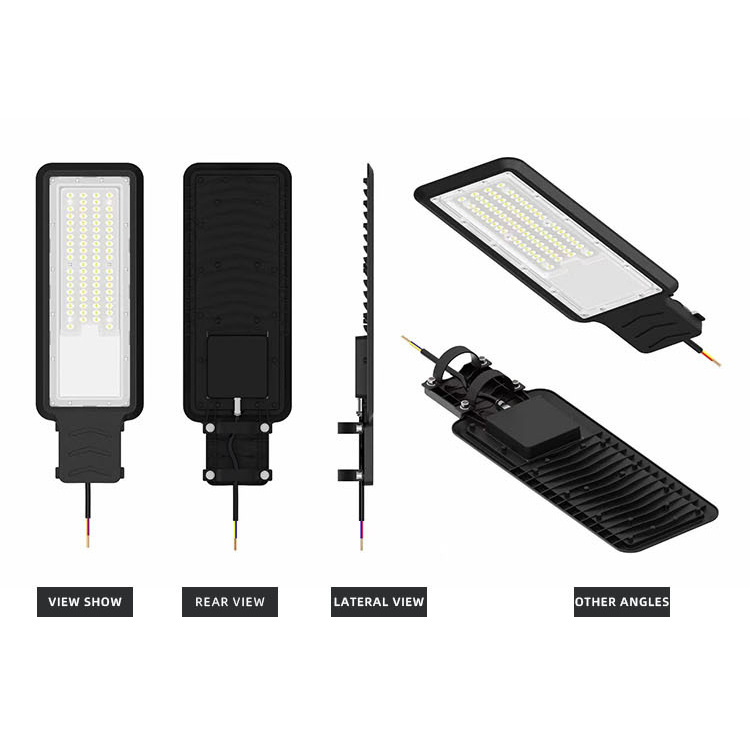

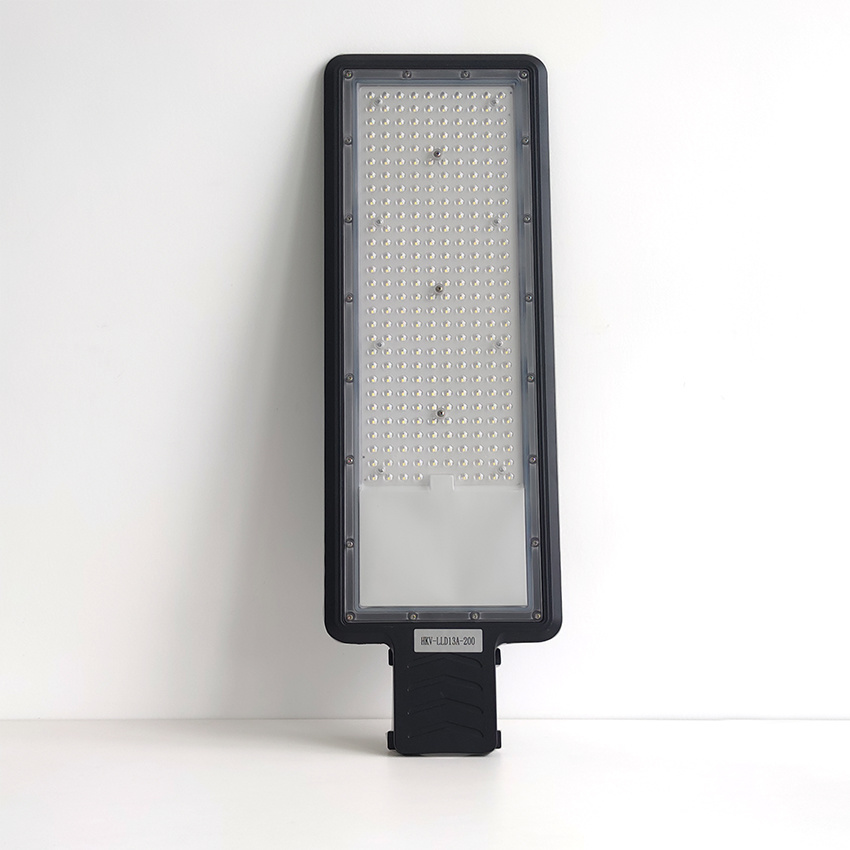

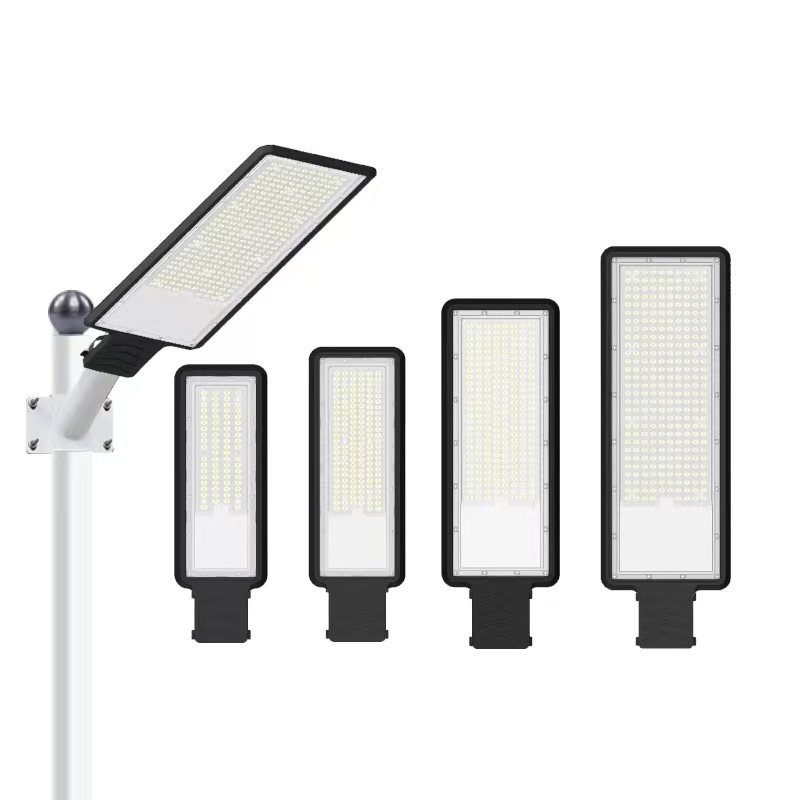

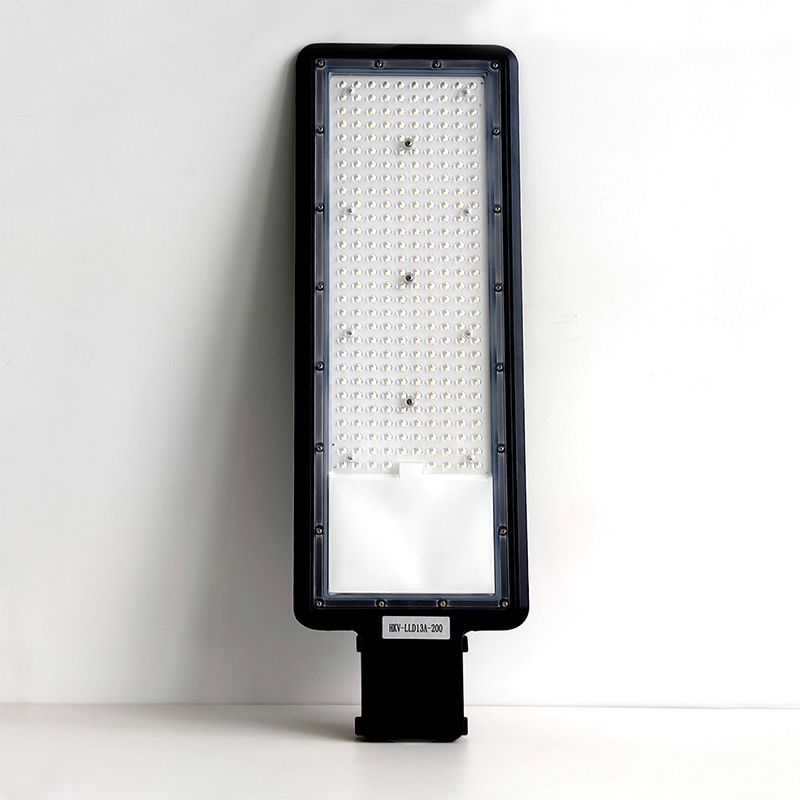

3、 Product images
4、 Luminous curve
5、 Product Information
MODEL | POWER | INPUT VOLTAGE | PF | SURGE | LED | LUMINOUS FLUX | COLOR TEMPERATURE | RA | LIFE |
HKV-LLD13A-50 | 50W | AC100-265V | ＞0.9 | 4KV | 2835 | 4500LM | 3000-6500K | 70/80 | 50000H |
HKV-LLD13A-100 | 100W | AC100-265V | ＞0.9 | 4KV | 2835 | 8500LM | 3000-6500K | 70/80 | 50000H |
HKV-LLD13A-150 | 150W | AC100-265V | ＞0.9 | 4KV | 2835 | 12000LM | 3000-6500K | 70/80 | 50000H |
HKV-LLD13A-200 | 200W | AC100-265V | ＞0.9 | 4KV | 2835 | 15000LM | 3000-6500K | 70/80 | 50000H |
