1、Product description

A. Solar panel: polycrystalline silicon, conversion rate >18%, using high-strength, high-transmittance, low-iron, suede tempered glass to increase sunlight radiation, with a transmittance of over 92%, efficient low-light charging response, 20-year power The attenuation rate is less than 10%, it has wind, hail and corrosion resistance, is sealed and waterproof, and is an efficient and multifunctional junction box that can adapt to normal use under various complex and harsh climate conditions.

B. Battery: 3.2V adopts deep-cycle power battery, which is sensitive in charging and discharging. It can adapt to stable operation in -40~60°C environment. The integrated design of built-in lamps is easy to install. It is equipped with efficient and excellent intelligent control and APMS adaptive power management. System, the automatic maximum power tracking performance is more than 20% higher than that of ordinary controllers, and it saves more than 80% energy than ordinary controllers. It has practical functions such as overcharge, overdischarge, light control, time control, and waterproofing, which can ensure better performance on sunny days. The light stays on for 365 consecutive days on cloudy and rainy days. The protection grade is IP67. The design life is ≥10 years.

C. Lamps: The outer casing is made of high-temperature new ABS engineering materials. It adopts an integrated design of imported high-transmittance lenses. The structure is sturdy and has excellent performance in terms of earthquake resistance and waterproofing. The waterproof protection level reaches IP65, ensuring that the lamps can survive in complex environments. Stable work, using American Bridgelux ultra-bright high-lumen LED chip, single chip power 2W, high color rendering index, color temperature: 3000-6500K±200K, no radiation pollution, light decay <5% after 10,000 hours, service life >50,000 hours.

D. 2 million pixels, real-time monitoring all day long. Main stream: 1280*720P/15fps, mobile APP camera 1920*1080P.

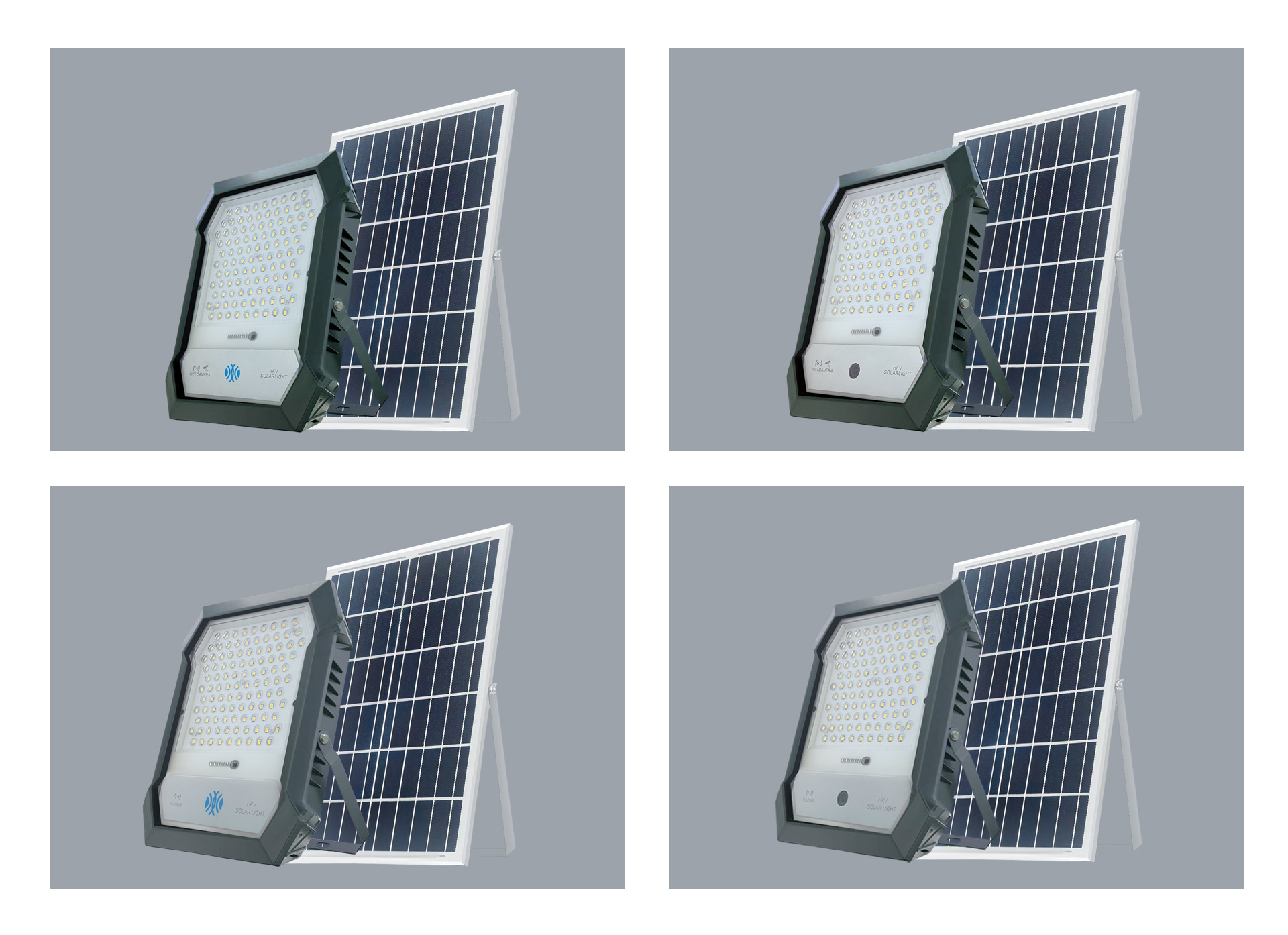

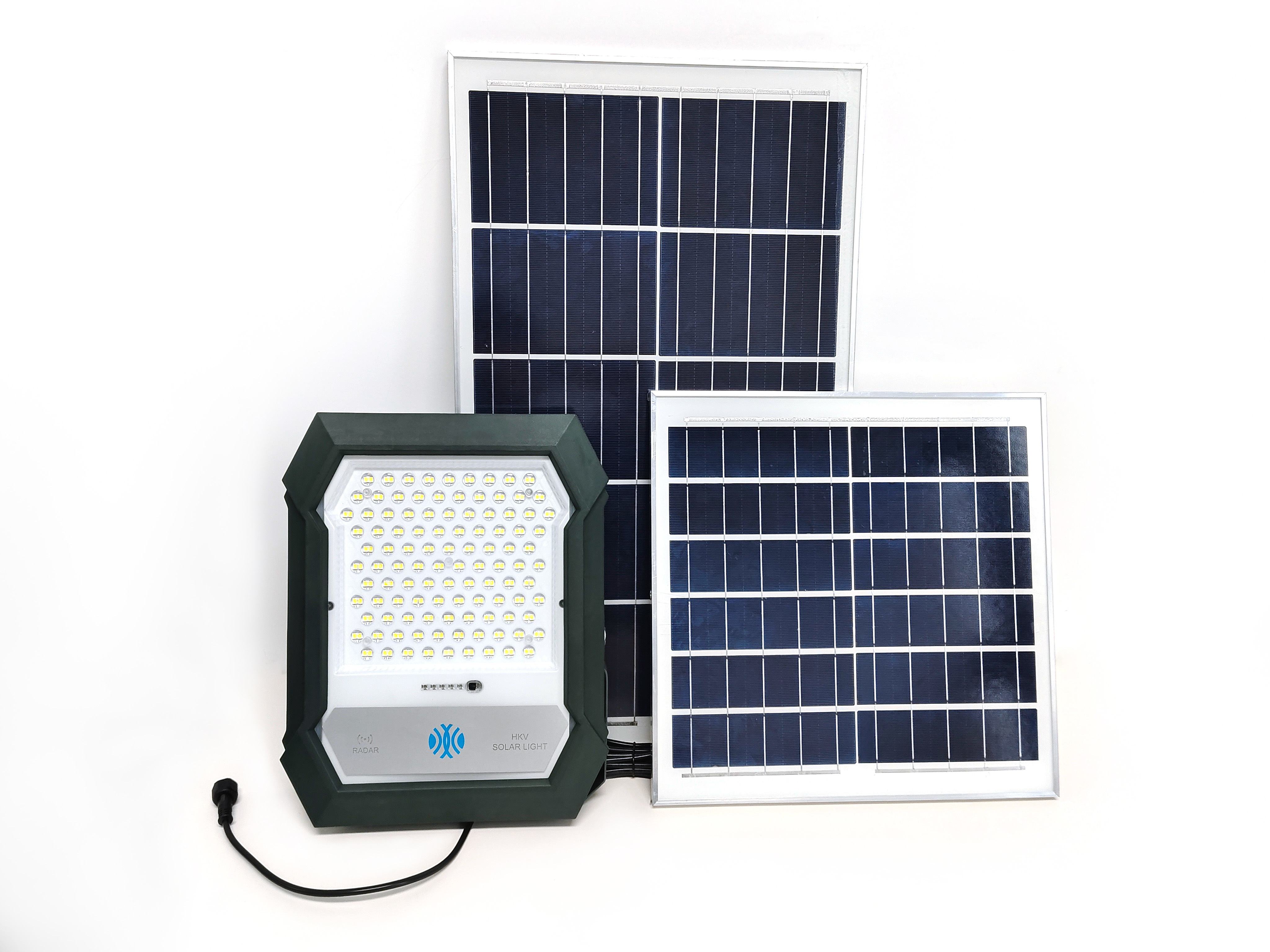

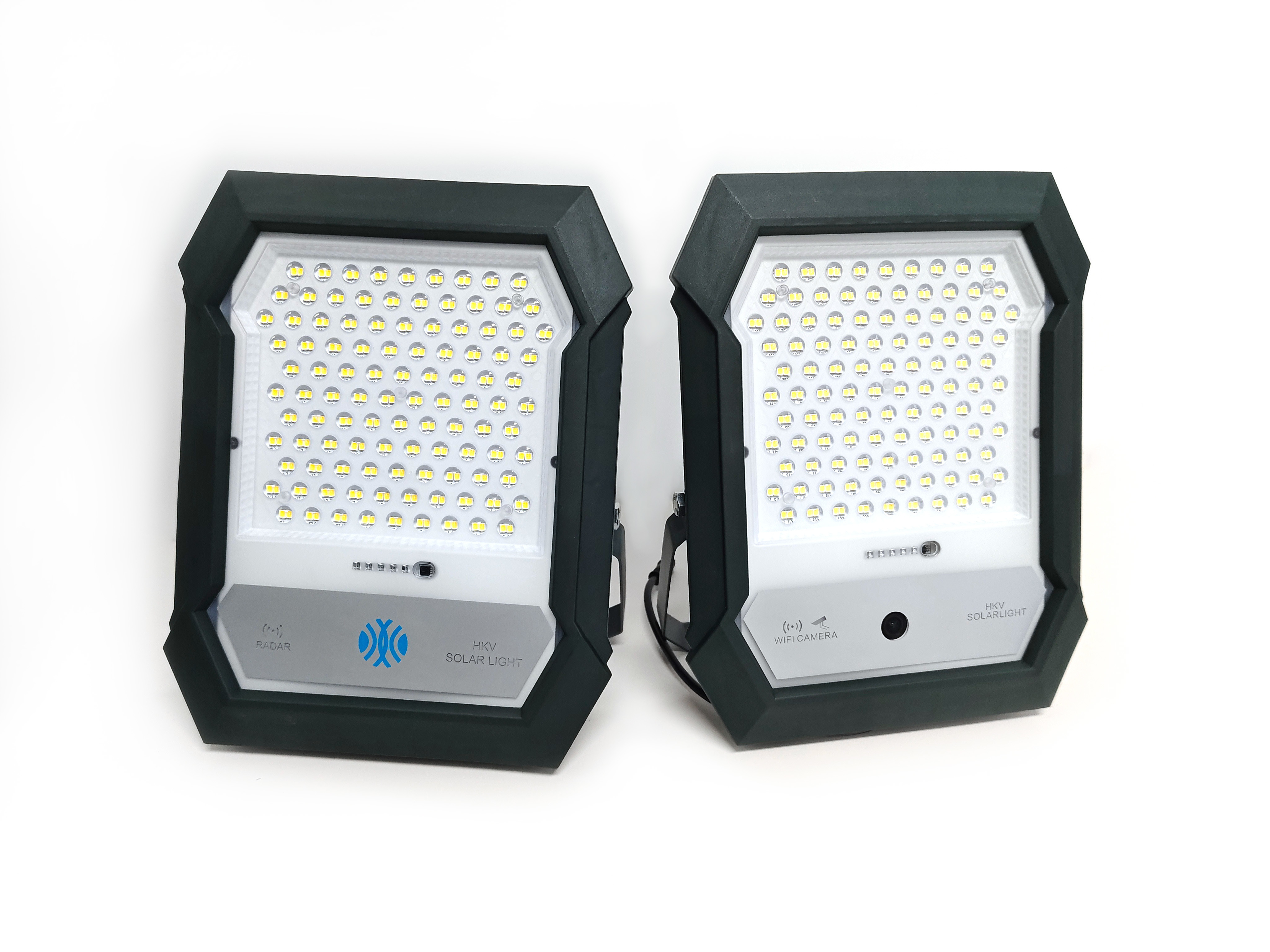

2、Product images

3、Product details

4、

5、

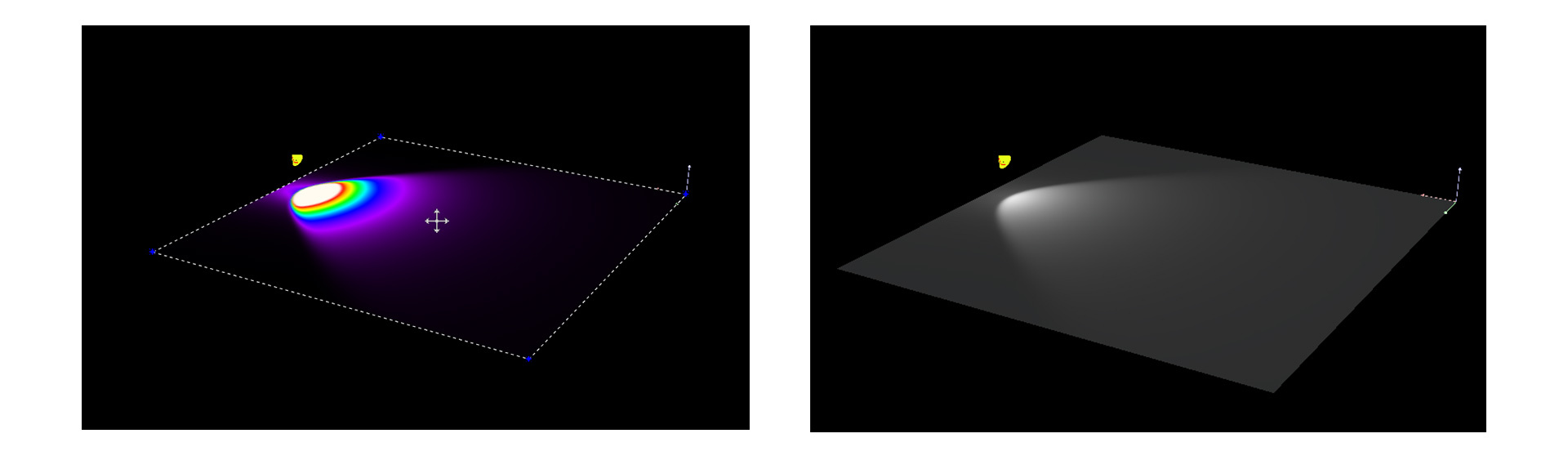

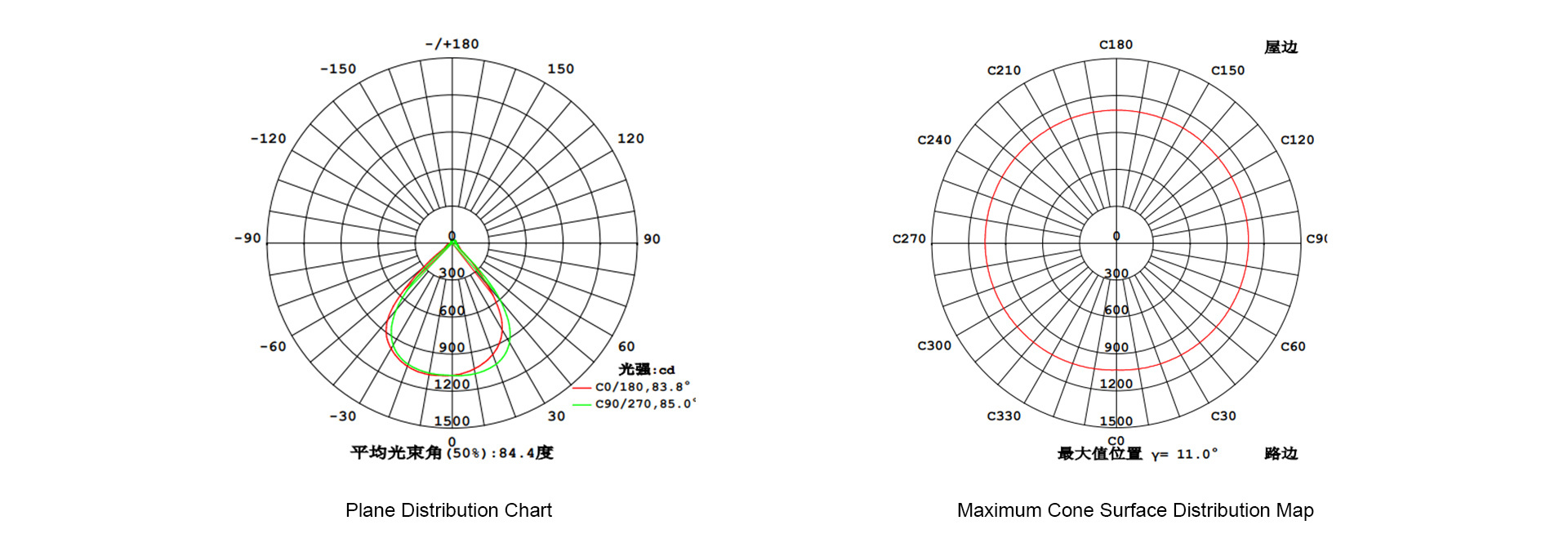

High lumen, with a 30% increase in brightness

        This product is equipped with a 90° LED optical lens through professional design. The lens can effectively converge the light of the light source to increase the brightness and reduce light loss. The light efficiency is increased by more than 20% compared with the traditional reflective cup. Meanwhile, the PC (Teijin, Japan) material used for the lens of this product has a light transmittance of up to 92% after processing, which is much higher than the 80% light transmittance of glass. The overall light efficiency of the lamp is increased by 30%, and the irradiation area is increased by more than 25%.

6、

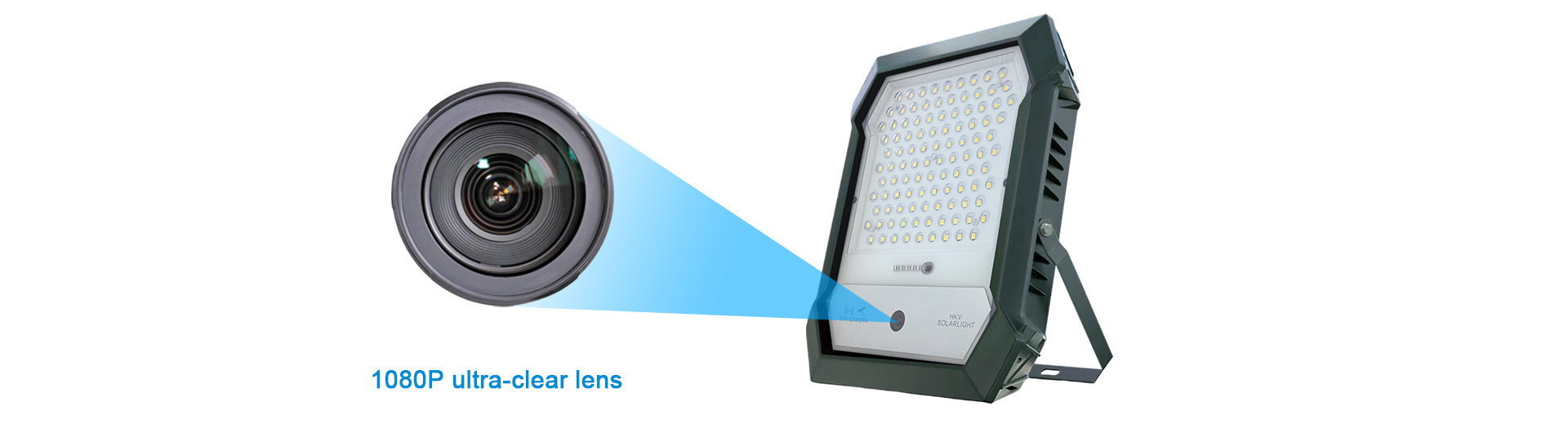

7、Introduction of the camera

           Equipped with a 14mm 1080P ultra-clear lens, the lens focus reaches 4mm. It supports functions such as WIFI network setting, device time zone setting, image inversion installation method, taking photos/videos on the APP side, two-way voice intercom, cloud storage for video recording and playback (users need to activate the cloud service on the APP by themselves), TF card storage for video recording and playback (maximum support for 128G TF card), etc.

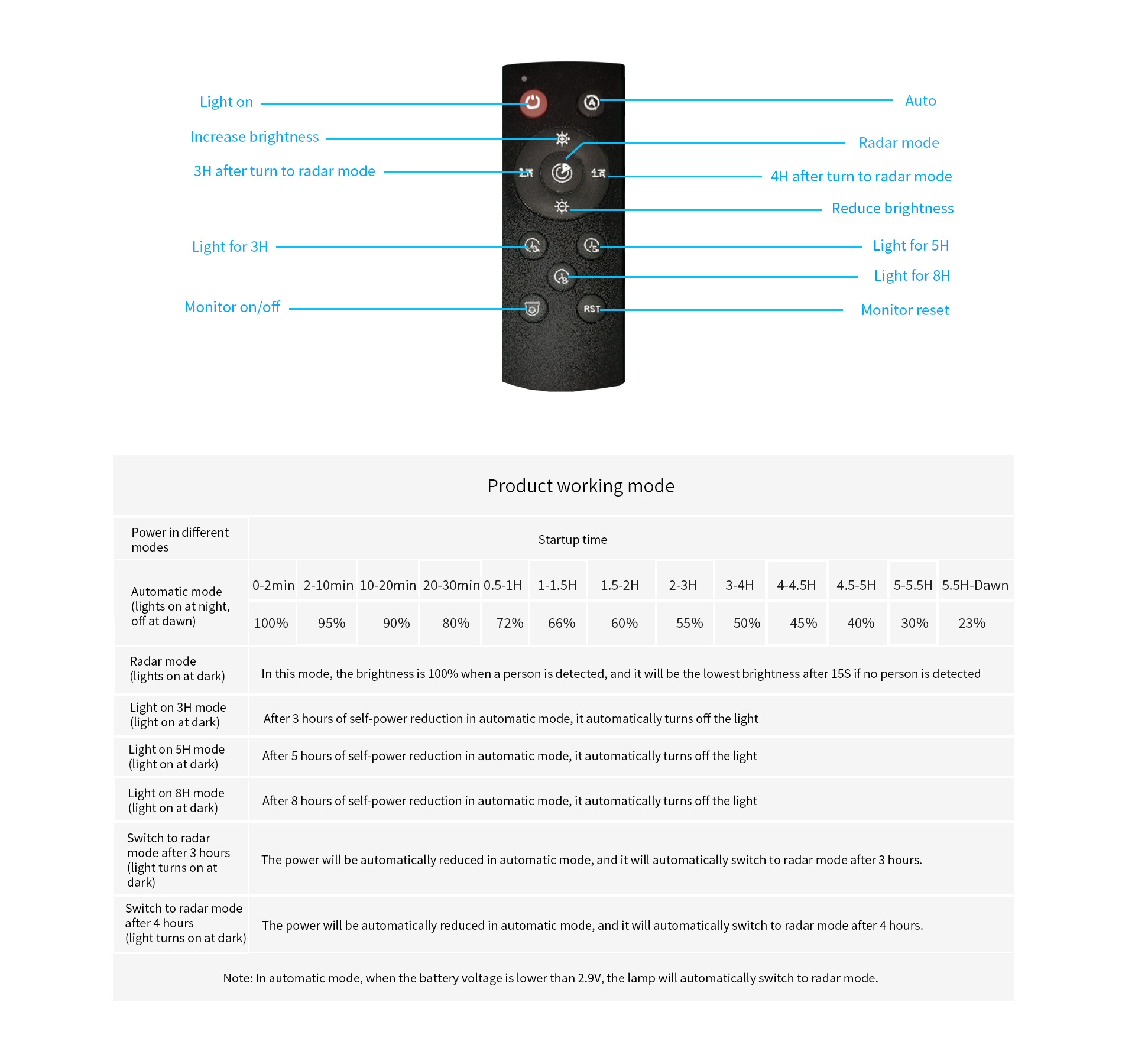

8、Remote control illustration

9、Packing

10、Precautions

Install it in a place without swaying and fire hazard, and avoid falling from high altitude, collision with hard objects.
There are batteries in the lamp, which may explode if short-circuited. Do not disassemble it by yourself to avoid accidents.
Do not cross-use accessories of different specifications, which may damage the lamps.
Since the lamp contains battery accessories, please be careful to handle it with care during transportation, storage and installation, and do not press or drop it.

11、Warranty

All products produced by our company are protected by intellectual property rights, and the whole lamp has a unified warranty of 2 years.

Note: Product quality assurance is based on the correct storage, installation, use and maintenance of the product. Product damage caused by improper installation and use, violation of product operating procedures, is not within the scope of this warranty. For quality problems within the warranty period, the company will choose to repair, adjust (parts) or replace the product to solve them. If the period is exceeded, appropriate material and labor costs will be charged.
